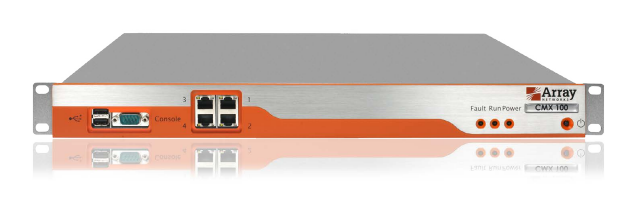

Array Networks CMX100
Centralized Management of Array APV Series and AG Series appliances

Array Networks CMX100

Array Networks Centralized Management
Array Networks CMX100 Series
CMX100 Centralized Management Appliance (10 Devices)
#AW977460
Our Price: $12,995.00
Add-on: 10 Device License
#AW920700
Our Price: $3,995.00
Add-on: Max Device License (100 total)
#AW920710
Our Price: $19,995.00

Click here to jump to more pricing!

Overview:

The Array Networks CMX100 centralized management appliance for application delivery controllers and universal access controllers is designed to help customers centrally monitor and manage the configuration of up to 100 Array Networks appliances, thereby simplifying administration and reducing costs.

The CMX 100 is designed to help enterprises and cloud service providers administrators efficiently monitor and manage the configuration of multiple Array Networks products from a central point. The management appliance provides an easy way to specify administrative privileges to different types of administrators and simplifies and speeds-up configuration management of multiple local or geographically distributed appliances. The CMX 100 provides aggregated graphical views of Array Networks products, performance, application traffic and network links. Moreover, the intuitive web browser user interface adheres to Array Networks familiar look-and-feel and requires little or no training.

Highlights & Benefits

  • Centralize management of APV Series, AG Series and SPX Series appliances
  • Simplifies and speeds up maintenance and reduces administrative costs
  • Concurrent monitoring and configuration management of up to 100 Array Networks appliances. Quickly replicate configuration template to multiple appliances.
  • Fine or coarse grain management, manage appliances individually or by groups
  • Real time monitoring, over 30 different types of Layers 2-7 system status and traffic graphs with simultaneous views of multiple graphs for each managed device
  • Visibility to quickly identify and isolate performance problems in the application delivery network to minimize the impact on your business
  • Centralized repository for active and earlier versions of device configuration files for quick provisioning of new appliances or rollback
  • E-mail notification/alerts to help avoid downtime and facilitate rapid recovery from faults
  • Green 1U form factor appliance for data center and service provider environments where space and power are at a premium
  • Local or secure remote Web browser management interface, English, Chinese (simplified and traditional) and Japanese language support

Features:

Product Description

Role-Based Administration
The CMX100 supports multiple administrative roles with different privilege levels. For example, a general administrator may be allowed to manage an individual appliance or group of appliances for a specific application, while a super administrator is allowed access and control over all appliances and groups and has the authority to establish privilege levels for general administrators. All administrative activities are logged for the purposes of troubleshooting, audit and compliance.

Simplified Management
Organize up 100 Array APV Series or AG Series appliances into up to 100 different device groups. Apply software upgrades, rollbacks and patches to any number of devices or groups. Reuse configuration templates between similar devices or groups. Organize critical device information in a central repository for device inventory and version control. For example: license keys, license expiration dates and configuration files.

Comprehensive Monitoring
Gain real-time visibility into application and service performance for bandwidth management and capacity planning. Predefined graphs provide visibility to assist in quickly isolating device, application or network problems. Gain visibility into SSL transaction processing performance to rapidly address capacity issues related to 1024-bit and 2048-bit SSL encryption. Up to 1 year of historical device statistics available for trending analysis, auditing and compliance.

Integrated Master Console
The CMX100 integrated master console includes a script editor that can be used to generate and execute configuration scripts on one or more devices. The script editor supports regular commands and comments for readability and documentation.

Automated Management
Automate time consuming management tasks through scripting. Create reusable configuration scripts, that can be deployed as-is or with modifications as needed, to rapidly move devices from staging to production or to provision new devices.

Auditing and Logging
The CMX100 logs and timestamps all administrator activity; for example: successful logins and failures, logouts, idle session timeouts, device configuration, backups and pushes, system patches and success and failure logs for particular operations.

Specifications:

CMX Specifications
Management Browser Based HTTPS Access
Browser Requirements Internet Explorer 8+ or Firefox 3+
Maximum Manageable Appliances 100
Manageable Appliances APV Series, AG Series, SPX Series
Supported Software Versions APV Series: 8.2 or later. SPX Series: 8.4.6.1 or later. AG Series: All
Memory 4GB
Ports 4 GbE Copper
Power Supply Single
Power Consumption 126W
Power 90-264VAC, 6-3A, 47-63Hz, ATX Auto-Switching
Standards 10/100/1000 Base-TX (GbE), IP, SSH, HTTP 1.0/1.1, SSL, RS232
Dimensions 1RU: 17”W x 15”D x 1.75”H
Weight 13.6lbs
Environmental Operating Temperature: 0° to 45°C,
Humidity: 0% to 90%, Non condensing
Regulatory Compliance ICES-003, EN 55024, CISPR 22, AS/NZS 3548, FCC, 47FR part 15 Class A, VCCI-A
Safety CSA, C/US, CE, IEC 60950-1, CSA 60950-1, EN 60950-1
Support Gold, Silver and Bronze Level Support Plans
Warranty 1 Year Hardware, 90 Days Software

Documentation:

Download the Array Networks CMX100 Datasheet (PDF).

Pricing Notes:

CMX100 Centralized Management Appliance (10 Devices)
#AW977460
Our Price: $12,995.00
Add-on: 10 Device License
#AW920700
Our Price: $3,995.00
Add-on: Max Device License (100 total)
#AW920710
Our Price: $19,995.00
Array Networks CMX100 Centralized Management Appliance (10 Devices) - Support
Array Networks CMX100 Centralized Management Appliance (10 Devices) - Gold Service
Includes: Software Updates, Repair & Return, E-Mail Support, Support Web Site, 24X7 Phone Support, Software Upgrade, and Advance Replacement Learn more
#GS977460
Our Price: $2,599.00
Array Networks CMX100 Centralized Management Appliance (10 Devices) - Silver Service
Includes: Software Updates, Repair & Return, E-Mail Support, Support Web Site, 12X5 Phone Support and Software Upgrade Learn more
#SS977460
Our Price: $2,079.00
Array Networks CMX100 Centralized Management Appliance (10 Devices) - Bronze Service
Includes: Software Updates, E-Mail Support, Support Web Site, and Software Upgrade Learn more
#BS977460
Our Price: $1,559.00
CMX100 Add-on: 10 Device License - Support
CMX100 Add-on: 10 Device License - Gold Service
Includes: Software Updates, Repair & Return, E-Mail Support, Support Web Site, 24X7 Phone Support, Software Upgrade, and Advance Replacement Learn more
#GS920700
Our Price: $799.00
CMX100 Add-on: 10 Device License - Silver Service
Includes: Software Updates, Repair & Return, E-Mail Support, Support Web Site, 12X5 Phone Support and Software Upgrade Learn more
#SS920700
Our Price: $639.00
CMX100 Add-on: 10 Device License - Bronze Service
Includes: Software Updates, E-Mail Support, Support Web Site, and Software Upgrade Learn more
#BS920700
Our Price: $479.00
CMX100 Add-on: Max Device License (100 total) - Support
CMX100 Add-on: Max Device License (100 total) - Gold Service
Includes: Software Updates, Repair & Return, E-Mail Support, Support Web Site, 24X7 Phone Support, Software Upgrade, and Advance Replacement Learn more
#GS920710
Our Price: $3,999.00
CMX100 Add-on: Max Device License (100 total) - Silver Service
Includes: Software Updates, Repair & Return, E-Mail Support, Support Web Site, 12X5 Phone Support and Software Upgrade Learn more
#SS920710
Our Price: $3,199.00
CMX100 Add-on: Max Device License (100 total) - Bronze Service
Includes: Software Updates, E-Mail Support, Support Web Site, and Software Upgrade Learn more
#BS920710
Our Price: $2,399.00
Installation of Array products at one site
#PS909101
Our Price: $2,000.00
Training: Array APV Quickstart (1 day, 1 person)
#PS909201
Our Price: $1,495.00
Training: Array AG/SPX Quickstart (1 day, 1 person)
#PS909202
Our Price: $1,495.00
Training: Array APV Implementation (2 days, 1 person)
#PS909203
Our Price: $2,795.00
Training: Array AG/SPX Implementation (2 days, 1 person)
#PS909204
Our Price: $2,795.00
Training: Instructor Training and Certification (5 days, 1 person)
#PS909205
Our Price: $6,995.00
Professional Services: Per Day Contracting Fee (8 hours)
#PS909301
Our Price: $2,000.00
Professional Services: Extended Hours (max. 8 addl. hours per purchase of PS909301), Per Hour
#PS909309
Our Price: $250.00
