Array Networks AppVelocity-S
Load Balancing & App Delivery with HW SSL Acceleration

Overview:

Available for APV Series physical appliances, AppVelocity-S integrates SSL acceleration with Layer 2-7 load balancing, acceleration, Web application security and a rich ADC feature set to improve efficiency and performance for delivering secured applications.

AppVelocity-S SSL Accelerators

Bridging the Gap for ADCs
Array AppVelocity-S SSL accelerators load balance application traffic and offload SSL encryption from servers to improve application performance and reduce the number of servers required to support ecommerce and high volume secure transaction processing.

SSL Accelerators for High-Performance Secure Transaction Processing
Available for APV Series physical appliances, AppVelocity-S SSL accelerators cost-effectively drive industry-leading performance across a rich, security-enhanced ADC feature set to deliver unmatched total value of ownership. Powered by Array’s award-winning 64-bit SpeedCore architecture and engineered for modern data center and cloud environments, AppVelocity-S combines high-performance hardware SSL acceleration with load balancing and application acceleration to create a traffic management solution ideal for ecommerce environments and applications requiring a high-degree of secure connectivity.

Features:

APV Series application delivery controllers optimize the availability and performance of applications and services while reducing cost and complexity in the data center.

Powered by Array's 64-bit SpeedCore™ architecture, APV Series application delivery controllers (ADCs) cost-effectively drive industry-leading performance across a robust set of availability, acceleration and security features to deliver unmatched overall value. Available as high-performance appliances that feature the latest in hardware acceleration and energy-efficient components or as agile virtual appliances that enable flexible pay-as-you-go business models, APV Series ADCs are engineered to boost application performance in modern data center, cloud and virtual environments and speed ROI for enterprise, service provider and public sector organizations.

Highlights & Benefits

Integrated Layer-4 and Layer-7 server load balancers, link load balancers, global server load balancers, connection multiplexing, SSL acceleration, caching, compression, traffic shaping, IPv6 and Web application security High-performance, kernel-level Layer-7 policy engine for enabling customizable application traffic management without impacting performance or scalability 2048-bit SSL with advanced client certificate handing for secure application support and easy application integration Multi-level security including a hardened OS, reverse-proxy architecture and kernel-level Web firewall for guarding applications without impacting performance Delivers 99.999% application availability, up to 5x application acceleration and provides a first line of defense for Web-enabled applications and cloud services Offloads Web and application servers for increased efficiency, capacity and return on investment (ROI) Intelligently load balances traffic across optimal WAN links to reduce costs and improve the performance of business critical applications

Application-specific certifications, guides and policies for rapid deployment and accelerated delivery of business critical enterprise applications ePolicy™ L7 application scripting and eRoute™ L4 routing for custom control of application traffic IPv6 gold certified for IPv4 preservation, IPv4/6 translation and IPv6 migration OpenStack load balancing-as-a-service (LBaaS) integration, Array eCloud™ SOAP API and XML-RPC for seamless interaction with cloud management systems and 3rd party monitoring solutions Extensible SOAP API for ease of integration with VMware vCenter Orchestrator and Microsoft System Center N+1 clustering for up to 32 hardware or virtual instances, single system image and stateful TCP failover for industry-leading availability and scalability Familiar CLI, intuitive WebUI and centralized management for ease of use and configuration

Product Description

Server Load Balancing
APV Series application delivery controllers ensure 99.999% uptime for applications and services. Leveraging robust distribution algorithms, health check mechanisms, clustering and failover capabilities, APV Series appliances maintain connections, ensure persistence, direct traffic away from failed servers and intelligently distribute application services across multiple servers for optimized performance and availability.

Layer-7 Policy Engine
Customized traffic management is often a trade-off between performance, control and ease-of-use. Unlike ADCs that rely on complex, computeintensive scripting to enable custom Layer-7 policies, Array supports a vast library of policies that are hard-coded at the kernel level, are configurable with point-and-click simplicity via the WebUI or CLI, and can be combined and nested to create advanced customized application traffic management. With Array's unique approach to Layer-7 traffic management, customers get the best of all worlds: ease-of-use, granular control and superior performance and scalability.

2048-Bit SSL Acceleration
SSL acceleration reduces the number of servers required for secure applications, improves server efficiency and dramatically improves application performance.

Offloading compute-intensive key exchange and bulk encryption, and delivering industry-leading client-certificate performance, SSL acceleration is ideal for scaling secure SaaS services, e-commerce environments and business-critical applications requiring high-volume secure connectivity.

Although more secure than the old 1024-bit standard, 2048-bit keys are five times more compute intensive and can impact both performance and the cost of supporting applications. Array 2048 and 4096-bit SSL encryption offers unbeatable scalability and performance with the lowest-cost per SSL TPS to offset transition costs and improve security without impacting performance.

WebWall Web Application Security
With WebWall™, Array's suite of Web application security capabilities, APV Series application delivery controllers can protect against denial of service (DoS) and malformed URL attacks and allow a wide range of Layer 2 through Layer 7 protective policies to be stacked atop one another for increased security.

APV appliances are security-hardened to protect applications and servers from L4 and L7 DDoS attacks and support content filtering to guard against Syn-flood, tear drop, ping-of-death, Nimda, Smurf and other malicious attacks. APV appliances also feature extensive access control lists, network address translation and stateful packet flow inspection – all executed at the kernel level – to guard against attacks and unauthorized access without impacting performance or scalability.

In addition, integrated Web application firewall capabilities provide deep application data inspection – beyond IP and TCP headers – to deal with attacks such as SQL injection and cross-site scripting. Deployable in front of multiple Web or application servers, Array's Web application firewall detects and responds to signatures for known application vulnerabilities and is programmable to deal with future threats.

Link Load Balancing & GSLB
Link load balancing (LLB) and global server load balancing (GSLB) ensure 99.999% availability for wide area network (WAN) connections and geographically dispersed sites. Link load balancing with end-to-end health monitoring and dynamic routing detects outages and monitors performance in real time to distribute traffic across multiple WAN connections for a premium, always-on end-user experience. Ideal for geographically distributed applications and multi-site architectures, global server load balancing directs traffic away from failed data centers and intelligently distributes services between sites based on proximity, language, capacity, load and response times for maximum performance and availability.

Application Acceleration
APV Series appliances leverage multiple acceleration technologies and optimizations to deliver a premium end-user experience for a wide range of applications and data services. Inmemory caching increases server efficiency and improves seek and response times by over 500%, hardware and software compression can reduce bandwidth utilization and end-user response times by more than half and TCP connection multiplexing aggregates millions of short-lived client connections into persistent fast lanes that increase server efficiency by up to 70% while improving application performance.

ePolicy L7 Application Scripting
Where Array's Layer-7 policy engine cannot meet application traffic management requirements, ePolicy scripting allows transactions and content to be manipulated to achieve traffic distribution that improves data center efficiency and mitigates the effect of delivering applications over the Internet.

eRoute L4 Routing
Using eRoute, inbound and outbound WAN traffic may be load balanced across multiple ISP links based on preset and user-defined algorithms and directed across routes optimized for maximum stability and performance. Additional L4 traffic management features include VLANs, port forwarding, port and link redundancy and the ability to bundle multiple low-cost links to improve bandwidth utilization and reduce costs.

Application-Specific Certifications
In conjunction with ISVs and application developer partners, Array APV Series appliances have been certified to provide load balancing, acceleration and security for enterprise applications such as Microsoft Lync 2010 and 2013, Microsoft Exchange 2010 and 2013, SAP, Oracle, eClinicalWorks and others. Leveraging deployment guides, businesses can take the guesswork out of application delivery. Following simple step by step instructions, IT can rapidly and confidently configure APV appliances for optimized delivery of business critical applications.

Traffic Shaping & QoS
Traffic shaping optimizes application traffic on WAN links to improve bandwidth utilization and end-user response times. Supporting user-defined policies, APV Series appliances prevent bandwidth-intensive applications from over-utilizing WAN links and ensure essential applications are prioritized to meet service level agreements. Used in conjunction with link load balancing, global server load balancing and QoS features such as filters and CBQs, traffic shaping can dramatically improve application performance.

IPv6 Support
For organizations needing an IPv6 Web presence, server load balancing protocol translation (SLBPT) transforms existing IPv4 Web sites into IPv6 compatible sites and greatly reduces the need for duplicate equipment, content and management. Where there is a need to make the most of depleted IPv4 resources, NAT and dual NAT (dual-stack IPv6) allow multiple clients to utilize a single IPv4 address. In migration environments, Array IPv6 solutions support both NAT64 and DNS64 to enable IPv6 clients to connect with IPv4 servers and content. To ensure a consistent application experience across IPv4 and IPv6 clients and networks – and to enable fully-capable, next-generation solutions – IPv6 feature parity is supported for all Array APV Series application delivery controllers.

Management & Integration
APV Series application delivery controllers are simple to install and offer intuitive configuration and management via a WebUI and a familiar command line interface. Using the administration tool kit, network managers can view the status for a wide range of system parameters, enable services on the fly and automate configuration using XML-RPC. Leveraging extensible APIs, application and network intelligence can be integrated with third-party monitoring and management or exported for optimizing complementary data center systems. In addition, APV Series appliances support VMware vCenter integration for intelligent command and control of virtualized application infrastructure.

eCloud APIs & OpenStack Integration
To meet the deployment and management requirements of load balancing and application delivery in the cloud, Array's eCloud API provides a script-level interface for cloud management systems to manage and monitor Array devices and assist in interactions between cloud operating systems and virtual machines running Array load balancing. For cloud providers and enterprises leveraging the OpenStack architecture for cloud management and automation, Array's integration with OpenStack load balancing-as-a-service (LBaaS) creates a standardized means to rapidly integrate with and control Array technology.

Product Editions
APV Series hardware appliances support two app delivery product editions. AppVelocity supports a rich server load balancing and application acceleration feature set optimized for local traffic management. AppVelocity-S combines high-performance SSL acceleration with server load balancing and application acceleration to create a traffic management solution ideal for ecommerce environments and applications requiring a high-degree of Secure connectivity. Both AppVelocity and AppVelocity-S product editions include link load balancing and support global server load balancing as an option. vAPV virtual appliances bundle all Array load balancing and application delivery features and support GSLB as an option.

Physical & Virtual Appliances
Dedicated APV appliances leverage a multicore architecture, SSDs, hardware SSL and compression, energy-efficient components and 10 GigE to create solutions purpose-built for scalable traffic management.

The APV10650 is available as an AVX10650 multitenant appliance that is capable of supporting up to 8 fully separate APV ADC instances – each with its own CPU, SSL, memory and I/O resources.

Available for common hypervisors, vAPV virtual appliances are ideal for organizations seeking to benefit from the flexibility of virtual environments, offer infrastructure services and new elastic business models or evaluate Array application delivery with minimal risk and up-front cost.

Product Features
Availability
Layer 2-7 Policy & Group Management	Multi-level virtual service policy routing – Static, default and backup policies and groups – Layer 2-7 application routing policies – Layer 2-7 server persistence – Application load balancing based on round robin, weighted round robin, least connections, shortest response and SNMP
Layer 2-3 Load Balancing	IP/MAC based load balancing for any IP protocol – Round robin, persistent IP and return to sender – Firewall, IPS/ IDS, anti-spam, anti-virus and composite applications
Layer 4 Load Balancing	TCP, TCPS and UDP protocols – Round robin, weighted round robin, least connections and shortest response – Persistent IP, hash IP, consistent hash IP, persistent IP + port and port range – All single port TCP applications, RADIUS and DNS server support – Composite IP application support
Layer 7 Load Balancing	HTTP/HTTPS, FTP/FTPS, SIP, RTSP and RDP – L7 content switching (QoS network and client port - SSL and SIP session ID - HTTP URL, host name, cookie and any header - hash header, cookie and query) – URL redirect and HTTP request/response rewrite – HTTP request filter
Server Persistence	Source + destination IP, Client IP, SSLID, HTTP header, URL, cookie, application – Individual session control
Content Routing & Switching	One arm, configurable reverse or transparent proxy mode per VIP – Configurable reverse or transparent proxy mode, triangle mode – Nested L7 and L4 policies – Combine L7 and L4 policies
Global Server Load Balancing	Application availability from multiple locations worldwide – DNS DoS protection – Global site/service selection – Proximity and IP persistence – Load balancing between multi-site SSL VPN deployments
Link Load Balancing	Outbound: round robin, weighted round robin, shortest response time, target proximity/dynamic detection – Inbound: round robin, weighted round robin, target proximity/dynamic detection – Integrated DNS
ePolicy L7 Application Scripting	Customize SLB policies and collaborate with SLB methods to realize load balancing among real services – Analyze packet contents of HTTP, simple object access protocol (SOAP), extensible markup language (XML) and diameter protocols – Receive, send, analyze, and discard generic TCP and TCPS packets – Perform pattern matching for text data – Control TCP connections – Monitor and take statistics of traffic
eRoute L4 Routing	Policy-based routing based on port, source/destination IP, UDP protocols, TCP – RIPv1, RIPv2 and OSPF support – Return to sender (RTS)/IP flow persistence – Port forwarding, link aggregation and port redundancy – Transparent to VPN remote access
Application, Server & Link Health Checks	ARP, ICMP, TCP, HTTP/HTTPS, DNS, Radius, RTSP, SIP single port/protocol health checks – Multi-port health checks – Health checks by protocol and content verification – Link health checks based on physical port, ICMP and user-defined L4 – Next gateway health checks, destination path health checks – Ensure availability and performance of applications over WAN links from a single point of management – Scriptable customer-defined composite health checks
Clustering	Up to 32 nodes – Active/active, active/standby – Configuration synchronization – Application-specific VIP health checks – Stateful TCP failover – Fast failover via USB ports – Automatic ISP failover
Single System Image	Create a single VIP (single ADC instance) out of any number of dedicated, multi-tenant or virtual APV appliances – Enable ultimate flexibility in scaling out
IPv6	Full IPv6 support – DNS64 & NAT64 – Dual Stack Lite – IPv6 to IPv4 and IPv4 to IPv6 NAT and full IPv6 addressing – IPv6 ready gold certified
Networking	Link aggregation, VLAN/MNET, NTP – Static and port-based NAT, advanced NAT for transparent use of multiple WAN links
Acceleration
Application Performance	Dynamic detect – Client connection persistence – Connection multiplexing – TCP buffering – IEEE 802.3ad link aggregation
SSL Acceleration (2048 & 4096-bit)	Hardware SSL processing – SSLv3 and TLSv1 – 4096-bit maximum cipher key size (RSA) – End-to-end security (Server-side SSL communication) – SSL session reuse and timeout control – Cipher strength reduction – Customizable cipher suite order – Customizable SSL error pages – Sharable to multiple SLB services – SSL self- check
Compression	Hardware accelerated – Virtualized compression – Inline HTTP processing – Compresses HTML, XML, Java scripts and CSS – Compresses Microsoft file formats (DOC, XLS, PPT) and PDF
Caching	Virtualized, memory-based cache – HTTP 1.1 compliant, policy-based cache
Traffic Shaping	Guarantees application performance – Rate shaping for setting user-defined rate limits on critical applications – QoS for traffic prioritization – Supports CBQs and borrow and unborrow bandwidth from queues – Advanced ACL (SLB QoS) – Supports QoS filters based on ports and protocols including TCP, UDP and ICMP
Security
WebWall Web Application Security	Hardened OS – Secure access only, access control based on client certificate information and access method – Customer configurable SSL/TLS version, cipher suite and minimum cipher strength – Tamper-proof key and certificate protection – WebWall stateful packet-inspection firewall – Over 1000 ACL rules without performance degradation – Proxy-based firewall – TCP syn-flood protection – Flash and surge event protection – DoS protection – HTTP access method control – URL filtering – HTTP/DNS cache for mitigating DDoS – Web Application Firewall – Deep application data inspection for dealing with attacks such as SQL injection and cross-site scripting – Detects and responds to known application vulnerabilities – Programmable to deal with future threats
DDoS Protection (SLB)	Protocol Attacks: SSL invalid packet, SSL handshake attack, HTTP invalid packet attack – Application Attacks: HTTP slow attack, HTTP flood attack, bandwidth consumption attack – DDoS attack logging
Client-Server Certificate Management	CSR and private key generation – Self-signed certificate support – Import certificate and private key – Import certificate format – Extensive certificate support – Certificate backup and restore – Wildcard certificate support
Client Certificate Authentication & Authorization	Turbo client certificate verification – Root and intermediate CA import – Basic client certificate verification – Certificate chain support – Certificate revocation list (HTTP, FTP, LDAP) – Online certificate status protocol (OCSP, HTTP/HTTPS) – Certificate-based access control – Inside SSL server, two-way certificates
Client Certificate Application Integration	Parse client certificate field information with different language/encoding – Pass individual field/group and field/ customer format to back-end applications – HTTP header, URL and cookie – Integrated with proxy rewrite – Detailed SSL statistics
Management
System	Centralized cluster management – Secure CLI, WebUI and SSH remote management – XML-RPC for integration with 3rd party management and monitoring – SNMP V2/V3 and private MIBs – Syslog (UDP or TCP) – Administrator and operator account management – E-mail, paging and alerting capability – Multiple configuration files and unit configuration synchronization – Online troubleshooting – Realtime monitoring – Role-based administration control
eCloud API	Interface for cloud management systems to control and monitor hardware and virtual APV appliances – Assists interaction between components such as virtual machines in CloudOS environments – Remote management of interaction between components such as virtual machines in CloudOS environments – Remote management of APV appliances – Notification of events on APV appliances – eCloud demo integrated on APV appliance – APV appliances – Notification of events on APV appliances – eCloud demo integrated on APV appliance – Supports integration with OpenStack Load Balancing-as-a-Service (LBaaS) standard Supports integration with OpenStack Load Balancing-as-a-Service (LBaaS) standard

Products Compare:

Array Application Delivery Architecture

	AppVelocity		AppVelocity-S
	APV 1600/1600T APV 2600 APV 3600 APV 3650	APV 5600 APV 6600 APV 10600 APV 10650	APV 1600/1600T APV 2600 APV 3600 APV 3650	APV 5600 APV 6600 APV 10600 APV 10650 APX 10650
L2, L4 & L7 SLB	Standard	Standard	Standard	Standard
LLB	Standard	Standard	Standard	Standard
GSLB	Optional	Optional	Optional	Optional
L7 Policy Engine	Standard	Standard	Standard	Standard
ePolicy Scripting	Standard	Standard	Standard	Standard
eRoute Routing	Standard	Standard	Standard	Standard
Transparent Proxy	Standard	Standard	Standard	Standard
SSL (SW)	Standard	Standard	N/A	N/A
SSL (HW)	N/A	N/A	Standard	Standard
Compression (SW)	Standard	Standard	Standard	Standard
Compression (HW)		Optional		Optional
RAM Caching	Standard	Standard	Standard	Standard
Traffic Shaping	Standard	Standard	Standard	Standard
Web Application Security (Including WAF)	Standard	Standard	Standard	Standard
IPv6 Support	Standard	Standard	Standard	Standard
Multi-language WebUI	Standard	Standard	Standard	Standard
Single System Image	Standard	Standard	Standard	Standard
Fast Failover	Standard	Standard	Standard	Standard
Clustering	Standard	Standard	Standard	Standard
eCloud API & LBaaS Integration	Standard	Standard	Standard	Standard

	APV1600	APV1600T	APV2600	APV3600	APV3650
Max. L4 Throughput	2 Gbps	2.5 Gbps	10 Gbps	20 Gbps	30 Gbps
Max. SSL TPS (2048)	1K	1.5K	5K	25K	25K
Max. SSL Throughput	700 Mbps	1 Gbps	3 Gbps	10 Gbps	10 Gbps
1 GbE Copper	Standard	Standard	Standard	Standard	Standard
1 GbE Fiber			Standard	Standard	Standard
10 GbE Fiber			Standard	Standard	Standard
Power Supply	Single Power: 90-264VAC, 6-3A, 47-63Hz		Single Power: 90-264VAC, 6-3A, 47-63Hz Dual Power: 90-264VAC, 8-4A, 47-63Hz	Dual Power: 100-240VAC, 8-4A, 47-63Hz
Dimensions	Single Power: 1U – 17" W x 15" D x 1.75" H		Single Power: 1U – 17" W x 15" D x 1.75" H Dual Power: 1U – 17" W x 19.875" D x 1.75" H	Dual Power: 1U – 17" W x 19.875" D x 1.75" H
Weight	Single Power: 13.6 lbs.		Single Power: 13.6 lbs. Dual Power: 17.2 lbs.	Dual Power: 19.8 lbs.
Environmental	Operating Temperature: 0° to 45°C, Humidity: 0% to 90%, Non condensing
Regulatory Compliance	ICES-003, EN 55024, CISPR 22, AS/NZS 3548, FCC, 47FR part 15 Class A, VCCI-A
Safety	CSA, C/US, CE, IEC 60950-1, CSA 60950-1, EN 60950-1
Support	Gold, Silver and Bronze Level Support Plans
Warranty	1 Year Hardware, 90 Days Software Supported
	APV5600	APV6600	APV10600	APV10650	APX10650
Max. L4 Throughput	15 Gbps	35 Gbps	80 Gbps	120 Gbps	7 Gbps
Max. SSL TPS (2048)	1K	1.5K	5K	25K	8.5K
Max. SSL Throughput	700 Mbps	1 Gbps	3 Gbps	10 Gbps	4 Gbps
1 GbE Copper	Standard	Standard
1 GbE Fiber	Standard	Standard
10 GbE Fiber	Standard	Standard	Standard	Standard	Standard
Power Supply	Dual Power: 90-264VAC,10-5A, 47-63 Hz
Dimensions	Dual Power: 2U – 17" W x 22.5" D x 3.5" H
Weight	Dual Power: 28 lbs.
Environmental	Operating Temperature: 0° to 45°C, Humidity: 0% to 90%, Non condensing
Regulatory Compliance	ICES-003, EN 55024, CISPR 22, AS/NZS 3548, FCC, 47FR part 15 Class A, VCCI-A
Safety	CSA, C/US, CE, IEC 60950-1, CSA 60950-1, EN 60950-1
Support	Gold, Silver and Bronze Level Support Plans
Warranty	1 Year Hardware, 90 Days Software Supported
	Supported Hypervisors (64-bit only)			Virtual Machine Requirements
vAPV With the exception of hardware SSL acceleration, vAPV virtual application delivery controllers support all APV features.	VMware ESXi 4.1 or Later XenServer 5.6 or Later OpenXen 4.0 or Later KVM 1.1.1-1.8.1 or later Hyper-V (Windows Server 2012)			2 Virtual CPUs 4 Virtual Network Adapters 2GB RAM 40GB Disk

Specifications:

Highlights & Benefits

High-performance SSL acceleration for securing data in transit, offloading compute-intensive processes from servers and improving application performance Hardware SSL accelerator supports 2048 and 4096-bit SSL encryption for alignment with NIST and certificate authority security requirements Industry-leading SSL client certificate management, authentication and authorization and application integration Integrated server load balancing, global server load balancing and link load balancing, connection multiplexing, caching, compression, IPv6 support, application scripting, dynamic routing, traffic shaping and Web application security 99.999% application availability and up to 5X application acceleration Offload Web and application servers for increased efficiency, capacity and ROI IPv6, NAT64/DNS64 and SLB-PT for addressing IPv4 depletion and enabling IPv6 migration

ePolicy application scripting and eRoute custom routing for fine grain control of traffic Application-specific certifications and guides for rapid deployment and optimized delivery of business critical applications Multi-level security including a hardened OS, reverse-proxy architecture and Web application firewall for guarding applications without impacting performance XML-RPC, eCloud APIs and OpenStack LBaaS integration for seamless interaction with cloud management systems and 3rd party monitoring solutions VMware vCenter integration for dynamic resource allocation and de-allocation Active-active clustering for up to 32 instances with single system image for seamless scaling and interaction between hardware and virtual appliances Familiar CLI and intuitive WebUI for ease of configuration and management Available for Array APV Series application delivery controller appliances and included with vAPV virtual application delivery controllers

Load Balancers for Application Availability & Performance
Available for APV Series physical appliances, AppVelocity load balancers cost-effectively drive industry-leading performance across a rich server load balancing and application acceleration feature set to deliver unmatched total value of ownership. Powered by Array’s award-winning 64-bit SpeedCore architecture and engineered for modern data center and cloud environments, AppVelocity boosts application performance and speeds return-on-investment from the small enterprise to the large service provider.

Highlights & Benefits

Integrated server load balancer, global server load balancer and link load balancer Advanced ADC features including connection multiplexing, caching, compression, IPv6 support, application scripting, dynamic routing, traffic shaping and Web application security 99.999% application availability and up to 5X application acceleration Offload Web and application servers for increased efficiency, capacity and ROI IPv6, NAT64/DNS64 and SLB-PT for addressing IPv4 depletion and enabling IPv6 migration ePolicy application scripting and eRoute™ custom routing for fine grain control of traffic VMware vCenter integration for dynamic resource allocation and de-allocation

Application-specific certifications and guides for rapid deployment and optimized delivery of business critical applications Multi-level security including a hardened OS, reverse-proxy architecture and Web application firewall for guarding applications without impacting performance XML-RPC, eCloud™ APIs and OpenStack LBaaS integration for seamless interaction with cloud management systems and 3rd party monitoring solutions Active-active clustering for up to 32 instances with single system image for seamless scaling and interaction between hardware and virtual appliances Familiar CLI and intuitive WebUI for ease of configuration and management Available for Array APV Series application delivery controllers and included with vAPV virtual application delivery controller appliances

Server Load Balancing
Server load balancing provides scalability and high availability for applications, Web sites and cloud services by monitoring the health of servers, evenly distributing loads across servers and maintaining session persistence and a seamless user experience in the event that one or more servers become overburdened or unresponsive.

Challenge

Solution

Ensure applications remain up and running in the event one or more servers become unavailable Seamlessly add servers and scale applications Improve server efficiency for greater ROI and better application performance Reduce response and transaction times for Websites, applications and cloud services Support server load balancing and application availability in public and private cloud environments

Clustered load balancing for distributing traffic, performing health checks and maintaining session persistence across multiple servers Load balancing any number of servers from a single URL and IP address Offload SSL and TCP processing for up to 10x greater server efficiency Caching, compression and SSL acceleration for up to 5x better application performance High-performance virtual load balancing with full feature parity for VMware and Citrix environments

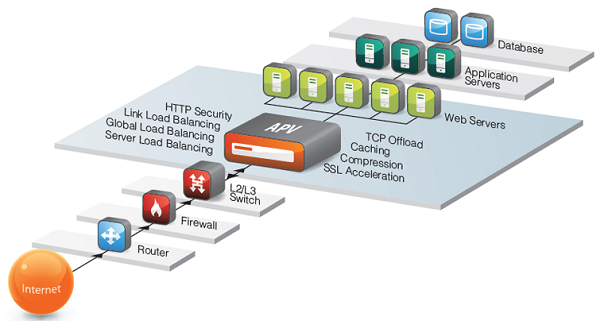

Server load balancing for application high-availability
Load balancing is a staple solution in virtually every data center. However, today’s application delivery controllers (ADCs) represent a considerable evolution from simple server load balancing. Array’s 64-bit multi-core SpeedCore architecture supports massive throughput and millions of concurrent connections for scaling application availability without impacting application performance.

In addition, integrated traffic management and application acceleration functions including SSL acceleration, adaptive compression, dynamic caching, connection multiplexing, content routing and quality-of-service provide unparalleled control over application traffic and the ability to significantly improve application performance.

For organizations deploying enterprise applications including Microsoft SharePoint, Microsoft Exchange or SAP, or managed service applications such as eClinicalWorks, Array load balancing solutions have undergone extensive certification testing and ship with configuration templates and deployment guides that take the time and guess work out of application delivery.

Available as dedicated appliances, virtualized multi-tenant appliances or virtual load balancers tuned for VMware and Citrix hypervisors, Array load balancers are equally at home in the data center and the cloud. Feature parity across platforms and unmatched performance, flexibility and management integration make Array’s application delivery solutions ideal for public cloud service offerings and private cloud environments.

Whether you are responsible for a single application or Website, a large Internet property or a public or private cloud, Array server load balancing delivers the performance, scalability, features and value essential for accelerating your business.

Application Acceleration
Application acceleration improves the user experience to drive greater adoption and improves the efficiency of underlying infrastructure to reduce capital and operational costs. Offloading compute-intensive functions from servers, enabling application-aware traffic management and optimizing the flow of traffic over wide area networks, application acceleration solutions extract maximum performance and ROI from investments in application infrastructure.

Challenge

Solution

Prevent overburdened servers from negatively impacting application performance Reduce response and transaction times for Websites, cloud services,e-commerce and business-critical applications Accelerate the performance of enterprise applications, file shares, Web content, email and voice and video across wide area networks Improve application performance for remote workers Maximize the performance of individual applications

Load balance application traffic; offload compute-intensive functions such as SSL encryption and TCP connection processing from servers Caching, compression, connection multiplexing, SSL acceleration and traffic shaping for improving application performance by up to 5x WAN optimization for prioritizing and compressing data and eliminating the transmission of redundant data across wide area connections Mobile client for optimizing performance to and from remote devices Deployment guides with optimized settings for specific applications

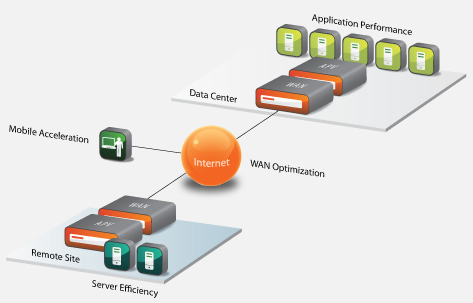

Load Balancing, Traffic Management and WAN Optimization for Application Acceleration

Achieving the highest levels of application performance requires optimizing servers and network connections as well as tuning applications to deliver a superior experience for a broad range of end-user profiles.



Deployed as stand-alone solutions or as part of holistic solutions for application acceleration, Array application delivery controllers and WAN optimization controllers maximize the efficiency of servers and network connections and provide the application intelligence essential for optimizing performance to any user, anywhere and accelerating your business.

Documentation:

Download the Array Networks APV Series Application Delivery Controller Datasheet (PDF).
