Array AVX Appliances
AVX Series Network Functions Platform

AVX Series network functions platforms host multiple Array and 3rd-party virtual appliances, providing the agility of cloud and virtualization with the guaranteed performance of dedicated appliances.

Array’s AVX Series network functions platform hosts up to 32 fully independent virtual appliances (VAs), including Array load balancing and SSL VPN, as well as 3rd-party VAs from leading networking and security vendors. Designed with managed service provider and enterprises in mind, the AVX Series enables data center consolidation without sacrificing the agility of cloud and virtualization or the performance of dedicated appliances. Uniquely capable of assigning dedicated CPU, SSL, memory and interface resources per VA, the AVX Series network functions platform is the only solution to deliver guaranteed performance in shared environments.

Array Virtualized Appliances

AVX3600

The AVX3600 is a 1U dual power virtualized appliance with 64Gbps of throughput. Multi-tenant virtualized appliance. Maximum capacity of 1 large tenant, or 2 medium tenants, or 4 small tenants, or 8 entry tenants, or 16 shared-entry tenants, and 25,000 SSL TPS 2K Keys.

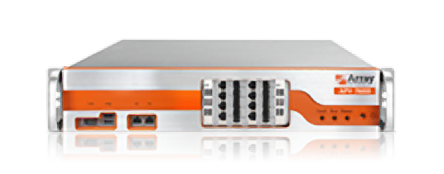

AVX7600

The AVX7600 is a 2RU dual power virtualized appliance with 64Gbps of throughput that hosts up to 16 independent vAPV or vxAG virtual appliance instances and supports mix-and-match, pay-as-you-grow licensing for four virtual appliance size options. Provides dedicated CPU, SSL, memory and I/O for each instance to assure guaranteed performance.

AVX10650

The AVX10650 is a 2RU dual power virtualized appliance with 128Gbps of throughput that hosts up to 32 independent vAPV or vxAG virtual appliance instances and supports mix-and-match, pay-as-you-grow licensing for four virtual appliance size options. Provides dedicated CPU, SSL, memory and I/O for each instance to assure guaranteed performance.

Array Network Functions Platform

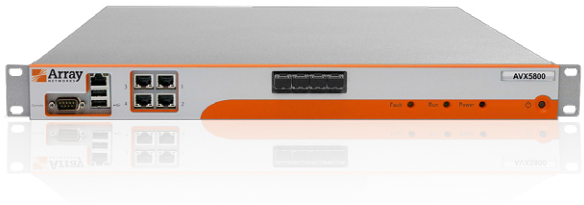

AVX5800

The AVX5800 is a 1U dual power virtualized appliance with 64Gbps of throughput. Multi-tenant virtualized appliance. Maximum capacity of 1 large tenant, or 2 medium tenants, or 4 small tenants, or 8 entry tenants, and 28,000 ECC TPS (ECDSA-SHA256), 40,000 SSL TPS 2K Keys.

AVX7800

The AVX7800 is a 2U dual power virtualized appliance with 64Gbps of throughput. Multi-tenant virtualized appliance. Maximum capacity of 2 large tenants, or 4 medium tenants, or 8 small tenants, or 16 entry tenants, and 38,000 ECC TPS (ECDSA-SHA256), 53,000 SSL TPS 2K Keys.

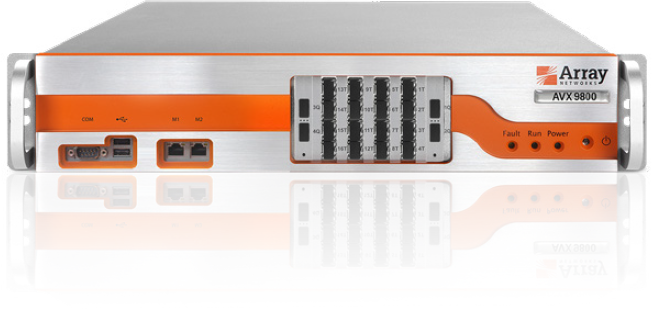

AVX9800

The AVX9800 is a 2U dual power virtualized appliance with 128Gbps of throughput. Multi-tenant virtualized appliance. Maximum capacity of 4 large tenants, or 8 medium tenants, or 16 small tenants, or 32 entry tenants, and 76,000 ECC TPS (ECDSA-SHA256), 110,000 SSL TPS 2K Keys.

Array AVX Appliances Optional Features

vAPV

The vAPV virtual application delivery controller runs on virtualized servers and industry-standard hypervisors to flexibly enable on-demand, full-featured load balancing and app delivery whenever and wherever it is needed.

vxAG

The vxAG virtual secure access gateway runs on virtualized servers and industry-standard hypervisors to flexibly enable on-demand, full-featured secure access whenever and wherever it is needed.

AMP

AMP provides real-time visibility into managed devices and their associated services, as well as AMP itself, with the ability to alert based upon thresholds. Device monitoring displays statistics such as network traffic, CPU usage, and memory usage.
